Machine Access Box for EcoStruxure™ Machine Advisor

VPN industrial router embedding IIOT gateway capabilities
Published by ETIC TELECOM

Features

  • Remote Access to a machine network
  • Data collection sent and stored in the Cloud
  • Data collection to trigger an alarm

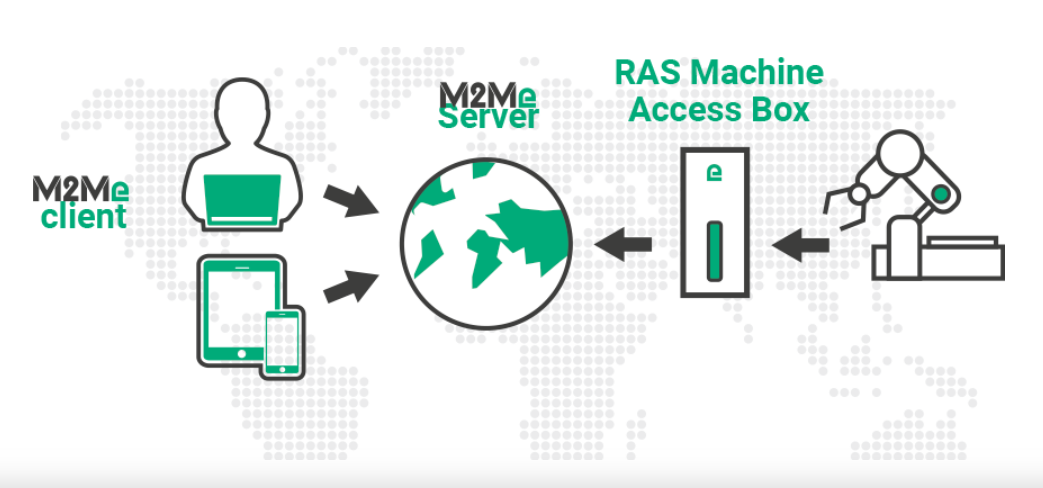

Remote Access to a machine network

  • The M2Me remote access solution is easy to install, easy to configure (Wizard), easy to update (management system for a fleet of RAS Machine Access Boxes available).
  • The IIOT RAS gateway offers a wide variety of Internet connections (4G world, Wi-Fi, Ethernet).
  • WAN connections can be backed up by a secondary link (example: cellular backup of an Ethernet connection).
  • Remote Access to a machine network

    Data collection sent and stored in the Cloud

  • An optional service (collect & Alert) allows the collection of ModBUS or OPCUA data and their transmission according to the MQTTs or HTTPs protocols in the Cloud.
  • The data stored in the Cloud can then be used to feed a dashboard in real time. Etic Telecom offers an off-the-shelf dashboard solution.
  • It is also possible to create your own dashboard using tools such as Excell, Power BI, Grafana, Google data studio.
  • All these tools are indeed compatible with our cloud storage solution and can recover the data stored by Etic Telecom.

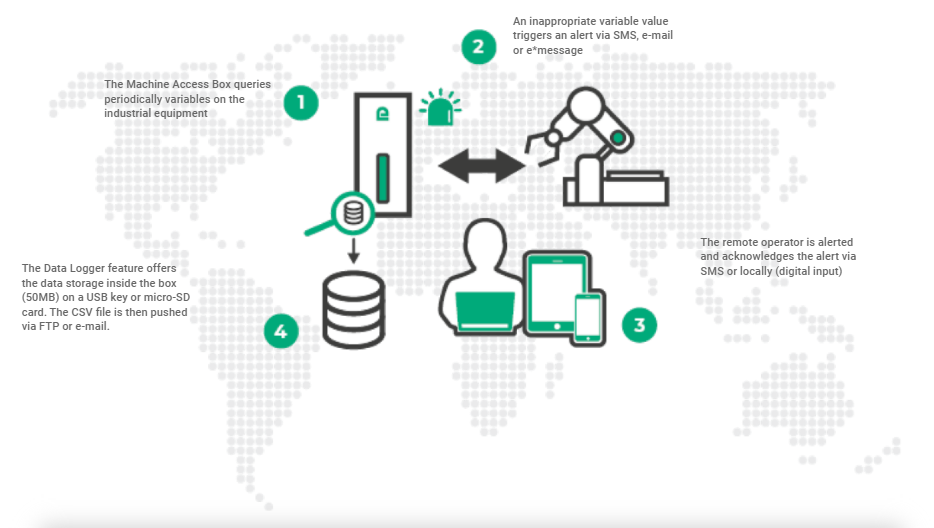

  • Data collection to trigger an alarm

  • The Machine Access Box can be configured to trigger an alert scenario based on the sending of SMS or e-mail to a preconfigured technical operator list.
  • Data collection to trigger an alarm
