SE.AppFunctional library for EcoStruxure™ Automation Expert

Application functional library
Published by Schneider Electric


  • Supported functions
  • EcoStruxure™ Automation Expert HMI Objects

Supported functions

The SE.AppFunctional provides elementary control and visualization functions for your automation system, it includes:

Elementary Modules (Schneider Electric recommends to replace by the SE.AppBase and SE.AppCommonProcess)

  • Analog (AnaCount, AnaCtrlPID, AnaDev1D, AnaDev2D, AnaLimMon, AnaLimMon4, AnalogInput, AnalogOutput, AnaMon, AnaSeq2, AnaSeq3, AnaSeq5, AnaSp, Ratio )
  • Binary (BinDev1S1D, BinDev1S2D, BinDev2S1D, BinManValve, BinStep3, BitCtrl, BitMon, DigitalInput, DigitalInputBasic, DigitalOutput)
  • Condition (CondMonSummary, PermMonSummary)
  • Utilities (PIDDetailMon)
  • EcoStruxure™ Automation Expert HMI Objects

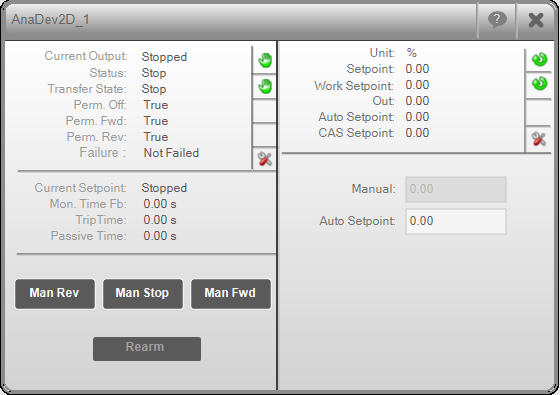

    The SE.AppFunctional provides symbols and faceplates for each CAT ready to be used in the EcoStruxure™ Automation Expert HMI.
    EcoStruxure™ Automation Expert HMI Objects
