SE.AppSequence library for EcoStruxure™ Automation Expert

Sequence library
Published by Schneider Electric

Features

  • Simplify engineering & deployment
  • Supported functions
  • EcoStruxure™ Automation Expert HMI Objects

Simplify engineering & deployment

  • Ready-to-use automation objects to reduce engineering lead time
  • Tested and validated Libraries help in quick deployment with less challenges during commissioning of systems
  • Simplify engineering & deployment

    Supported functions

    The SE.AppSequence provides elementary control and visualization functions for your automation system, it includes:


    Elementary Modules

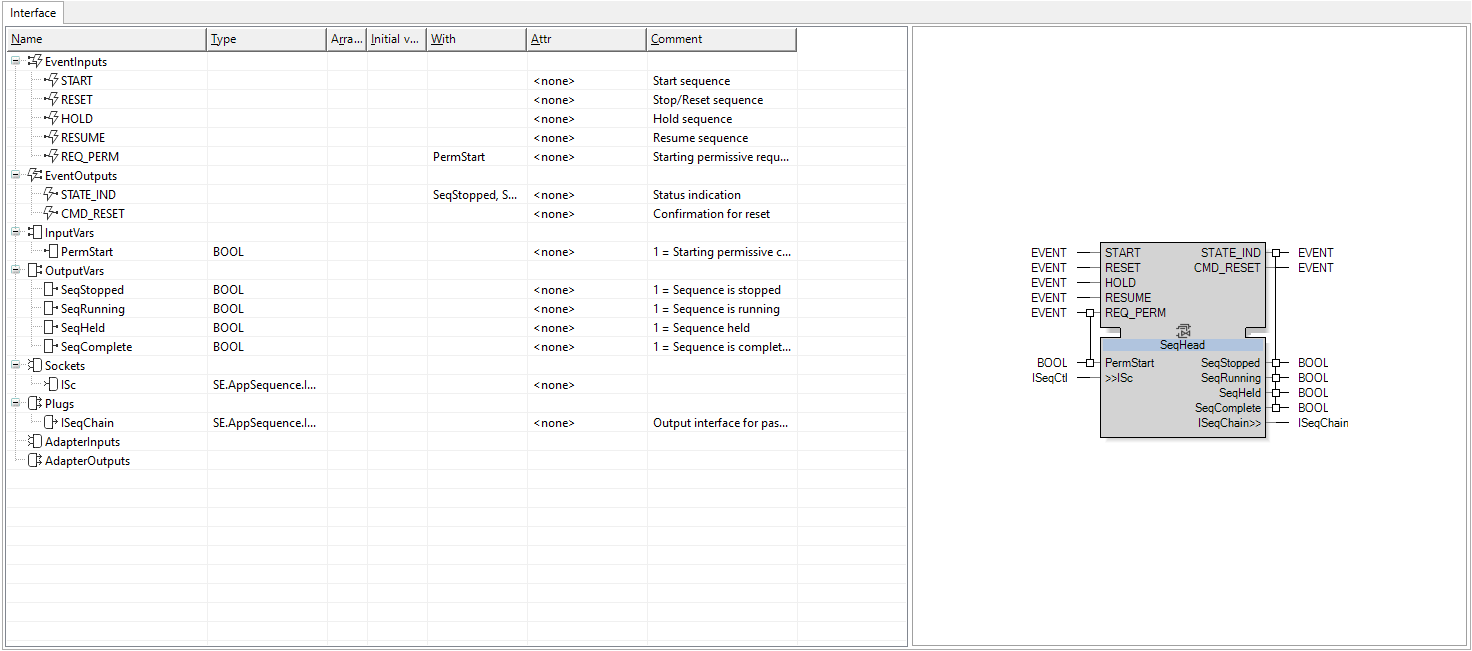

  • Sequence Head (Initialize the Sequence and Control Operational State)
  • Sequence Step (Step and its associated transition)
  • Sequence Terminate (End of the sequence)
  • Sequence Transition (Transition for alternative branch)
  • Setpoint Management (Ramp, Setpoint Bool, Setpoint Real)
  • Sequene Transition Jump Back (Entry point on a Step to connect to a loop)
  • Sequence Parallel Alocation (Parallel branch)
  • Actions (SeqActionOnEnter, SeqActionOnLeave, SeqActionWhileActive)
  • EcoStruxure™ Automation Expert HMI Objects

    The SE.AppSequence provides symbols and faceplates for each CAT ready to be used in the EcoStruxure™ Automation Expert HMI.

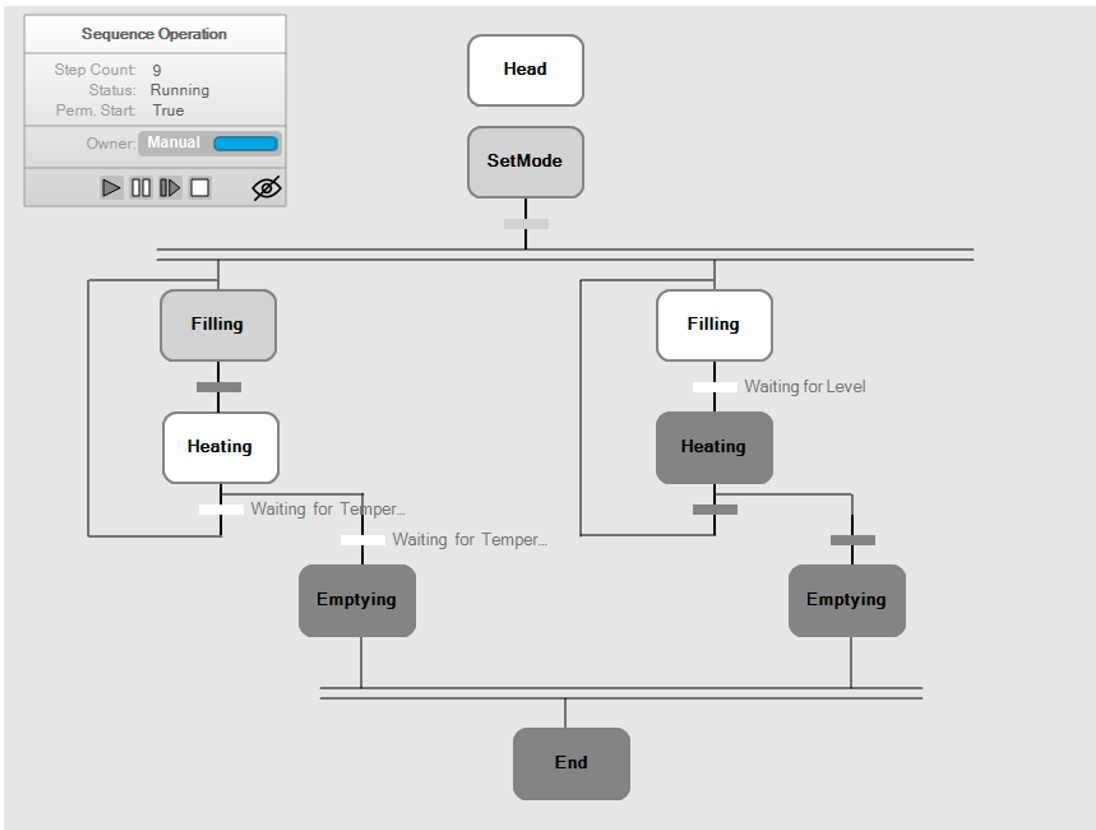

    EcoStruxure™ Automation Expert HMI Objects
