SE.AppCommonProcess library for EcoStruxure™ Automation Expert

Application common process library
Published by Schneider Electric

Features

  • Simplify engineering & deployment
  • Supported functions
  • EcoStruxure™ Automation Expert HMI Objects
  • AVEVA™ System Platform Objects

Simplify engineering & deployment

  • Ready-to-use automation objects to reduce engineering lead time
  • Tested and validated Libraries help in quick deployment with less challenges during commissioning of systems
  • Simplify engineering & deployment

    Supported functions

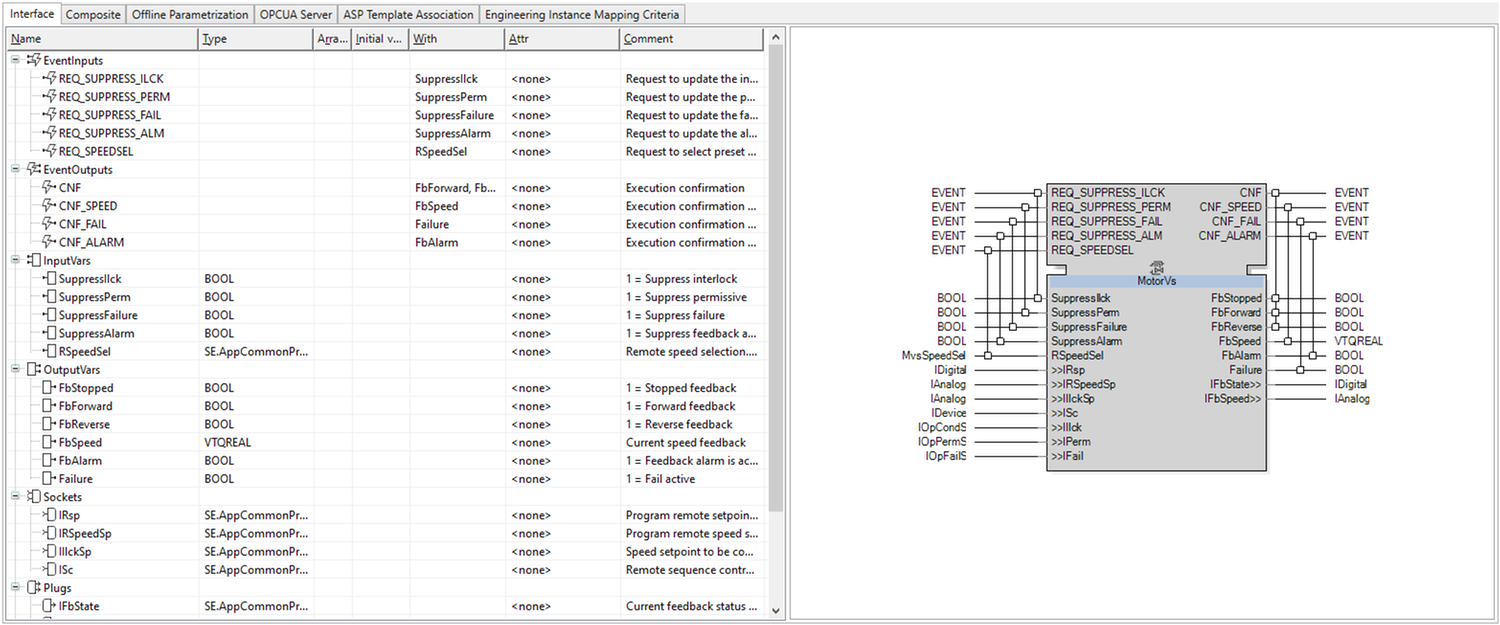

    The SE.AppCommonProcess provides elementary control and visualization functions for your automation system, it includes:



    Elementary Modules

  • Auxiliary Functions (Alarm Summary, Message Box)
  • Equipment Module (Flow Control, Pump Set)
  • Motors (Motor, Motor with 2 Directions and 2 Speeds, Motor Cyclic, Motor Variable Speed)
  • Process Control (PID, PID Multiplexer, Pulse-width Modulation, Ratio, Split2Range, Step3)
  • Setpoint Management (Ramp, Setpoint Bool, Setpoint Real)
  • Signal Processing (Analog, Digital, Counter, Multi Analog, Totalizer)
  • Supporting Functions (Condition, Device Auxiliary, Local Panel, Predictive Maintenance)
  • Valves (Valve, Valve with 2 Outputs, Bi-state manually operated valve, Motorized Valve, Motorized Valve with Positioner, Control Valve)
  • EcoStruxure™ Automation Expert HMI Objects

    The SE.AppCommonProcess provides symbols and faceplates for each CAT ready to be used in the EcoStruxure™ Automation Expert HMI.

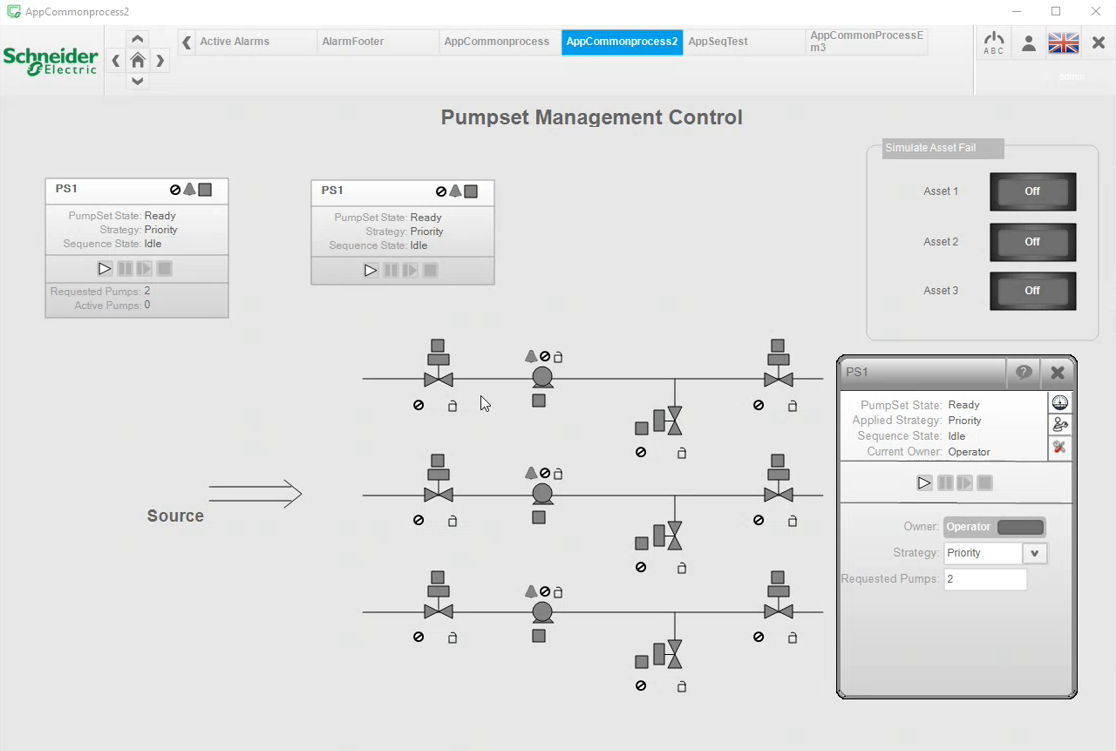

    EcoStruxure™ Automation Expert HMI Objects

    AVEVA™ System Platform Objects

    The SE.AppCommonProcess provides symbols and faceplates for each CAT ready to be used in AVEVA™ System Platform.

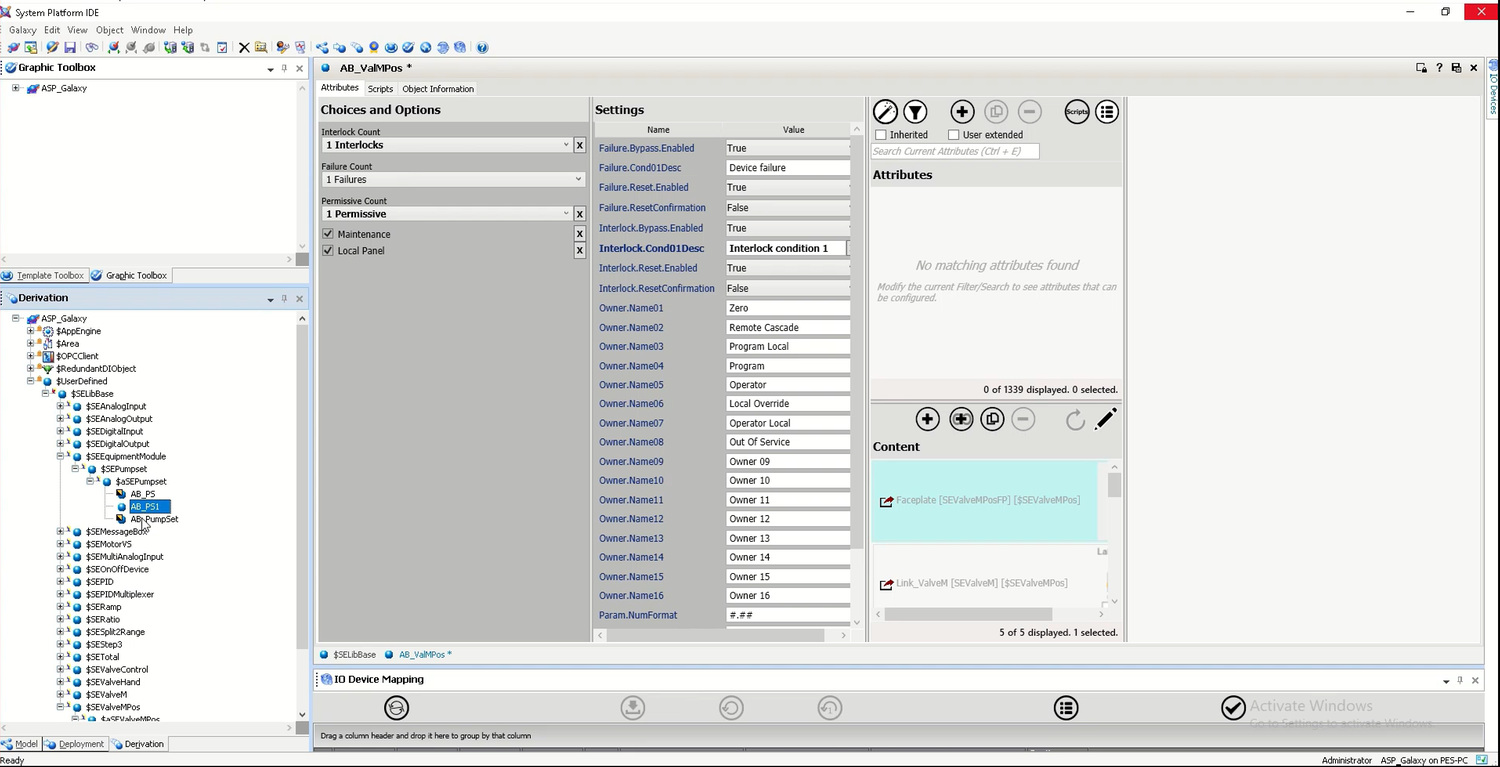

    AVEVA™ System Platform Objects
