eNod4-D Batch Dosing Application for EcoStruxure™
Application for filling and dosing control by weight at very high speed
Published by
SCAIME SAS
eNod4-D Batch Dosing Application for EcoStruxure™
Published by
SCAIME SAS
Starts at $510
Features

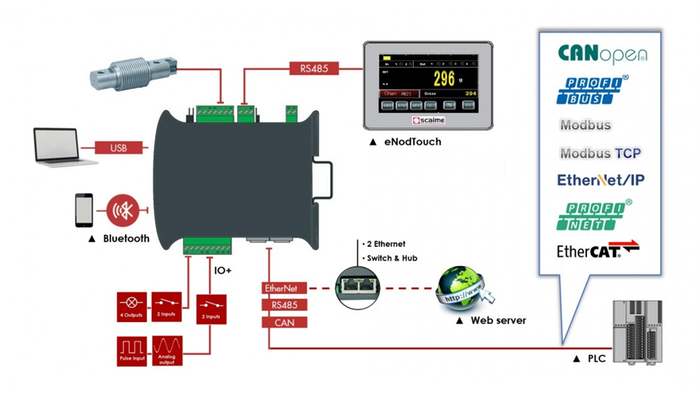

eNod4 connectivity
The eNod4-D weighing controllers are designed to be integrated into automated systems ensuring connectivity with Schneider Electric PLCs.
Features
-
Industrial network link: CANopen®, Modbus-RTU, PROFIBUS-DP, Modbus-TCP, EtherNet/IP, PROFINET or EtherCAT®
-
USB link with eNodView PC software
-
Optional touchscreen eNodTouch
-
Bluetooth with Android App
-
A web server for EtherNet versions
![eNod4 connectivity]()

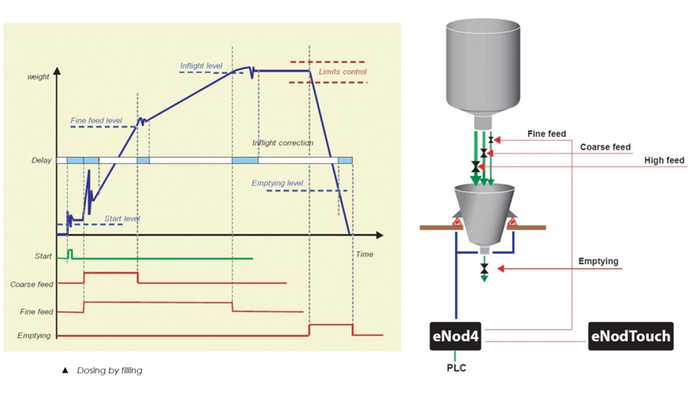

eNod4-D dosing functionalities
eNod4-D includes functionality dedicated to mono-product dosing/filling. According to parameters sent from a Programmable Logic Controllers, it manages a two feed dosing cycle by loading or unloading.
Features
-
Dosing with 1, 2 or 3 feed rates
-
Automatic inflight correction
-
Emptying/ejection control (by filling) or reloading control (by unloading)
-
Defects control: flow rate, dosing limits
![eNod4-D dosing functionalities]()

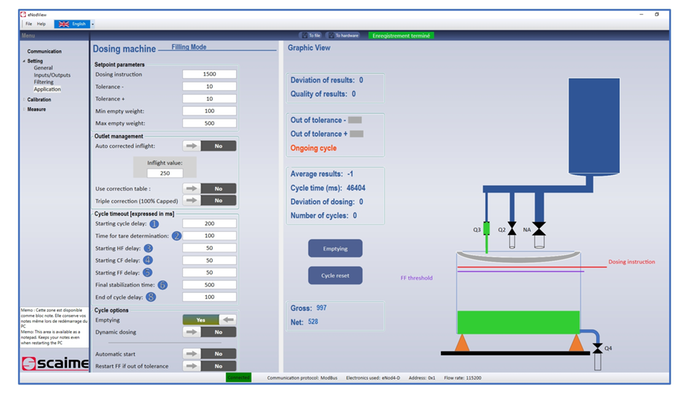

eNodView PC software
eNodView is a PC software for eNod4 calibration and programming.
eNodView functions
-
Save and restore eNod4 configuration files
-
Setting, calibration and eNod4 control
-
Measurements, results and I/O graphical display
-
Setting the eNod4 dosing application
![eNodView PC software]()

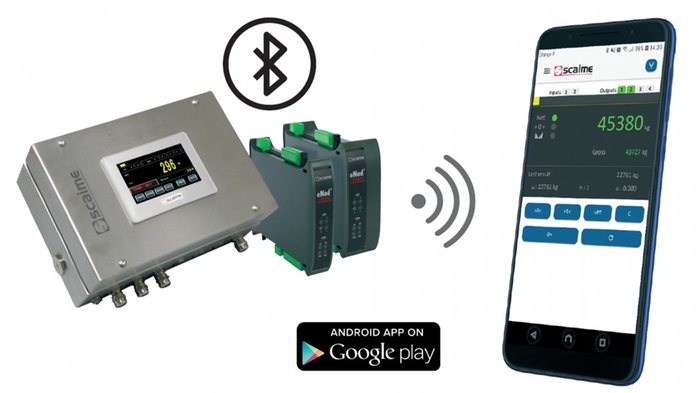

eNodApp mobile application
The eNodApp app allows you to view the data, control, configure, and calibrate all eNod4 equipped with Bluetooth communication option.
![eNodApp mobile application]()
Solutions - Connected product layer
eNod4 is a high performance weighing controller specially designed for easy and fast integration in automated system thanks to fieldbus or Ethernet connectivity. eNod4 is a single chanel weighing module able to manage up to 8 load cells. It is designed for most demanding weighing applications in terms of accuracy and speed. eNod4 includes advanced application for calibration, digital filtering for vibration cancellation and weighing functions like Zero, Tare and mesurement stability control.
eNod4-D automatically controls a complete filling or emptying cycle at 1, 2 or 3 feed speeds.
Solutions - Edge control layer
eNod4 offers a perfect connectivity with Modicon PLCs throught CANopen, Modbus-TCP or Ethernet/IP networks. All the configuration parameters, the process data and weighing functions are accessible from EcoStruxure Machine Expert and Ecostruxure Control Expert. To implement and optimize the weighing application, SCAIME offers the software eNodView allowing to display measurements, display and adjust the digital filters effect, make the application setting.
Solutions - Apps, analytics, & services
SCAIME provides several software tools to implement and optimize the weighing application. eNodView is a PC software allowing to display measurements, adjust the digital filters, make the application setting and save the configuration. The application eNodApp, accessible from any Android smartphone or tablet, allows to control the weighing system, without physically accessing eNod4 or interrupting communication with the control system. The application offers a secure interface for configuring the system, carrying out weighing processes, or conducting maintenance operations such as calibration. eNod4 with Ethernet connectivity also offers a webserver allowing full eNod4 remote control, Read & write parameters, calibrate the weighing system and display all the measurements.
eNod4 connectivity
The eNod4-D weighing controllers are designed to be integrated into automated systems ensuring connectivity with Schneider Electric PLCs.
Features
- Industrial network link: CANopen®, Modbus-RTU, PROFIBUS-DP, Modbus-TCP, EtherNet/IP, PROFINET or EtherCAT®
- USB link with eNodView PC software
- Optional touchscreen eNodTouch
- Bluetooth with Android App
- A web server for EtherNet versions
eNod4-D dosing functionalities
eNod4-D includes functionality dedicated to mono-product dosing/filling. According to parameters sent from a Programmable Logic Controllers, it manages a two feed dosing cycle by loading or unloading.
Features
- Dosing with 1, 2 or 3 feed rates
- Automatic inflight correction
- Emptying/ejection control (by filling) or reloading control (by unloading)
- Defects control: flow rate, dosing limits
eNodView PC software
eNodView is a PC software for eNod4 calibration and programming.
eNodView functions
- Save and restore eNod4 configuration files
- Setting, calibration and eNod4 control
- Measurements, results and I/O graphical display
- Setting the eNod4 dosing application
eNodApp mobile application
The eNodApp app allows you to view the data, control, configure, and calibrate all eNod4 equipped with Bluetooth communication option.
Solutions - Connected product layer
eNod4 is a high performance weighing controller specially designed for easy and fast integration in automated system thanks to fieldbus or Ethernet connectivity. eNod4 is a single chanel weighing module able to manage up to 8 load cells. It is designed for most demanding weighing applications in terms of accuracy and speed. eNod4 includes advanced application for calibration, digital filtering for vibration cancellation and weighing functions like Zero, Tare and mesurement stability control.
eNod4-D automatically controls a complete filling or emptying cycle at 1, 2 or 3 feed speeds.
Solutions - Edge control layer
eNod4 offers a perfect connectivity with Modicon PLCs throught CANopen, Modbus-TCP or Ethernet/IP networks. All the configuration parameters, the process data and weighing functions are accessible from EcoStruxure Machine Expert and Ecostruxure Control Expert. To implement and optimize the weighing application, SCAIME offers the software eNodView allowing to display measurements, display and adjust the digital filters effect, make the application setting.
Solutions - Apps, analytics, & services
SCAIME provides several software tools to implement and optimize the weighing application. eNodView is a PC software allowing to display measurements, adjust the digital filters, make the application setting and save the configuration. The application eNodApp, accessible from any Android smartphone or tablet, allows to control the weighing system, without physically accessing eNod4 or interrupting communication with the control system. The application offers a secure interface for configuring the system, carrying out weighing processes, or conducting maintenance operations such as calibration. eNod4 with Ethernet connectivity also offers a webserver allowing full eNod4 remote control, Read & write parameters, calibrate the weighing system and display all the measurements.
