eNod4-T Weighing Application for EcoStruxure™
Weighing for plant engineering and machine control
Published by
SCAIME SAS
eNod4-T Weighing Application for EcoStruxure™
Published by
SCAIME SAS
Starts at $325
Features

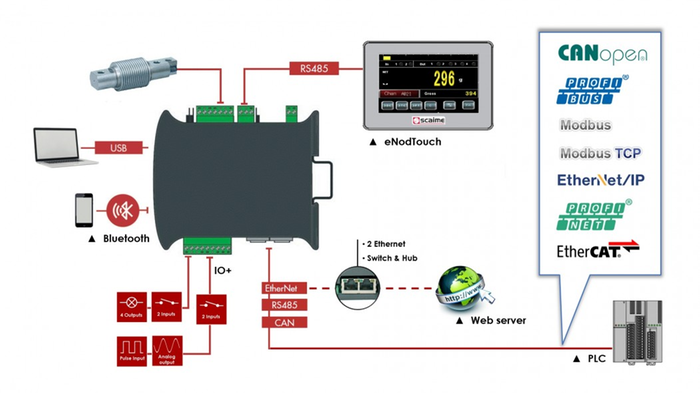

eNod4 connectivity
The eNod4 weighing controllers are designed to be integrated into automated systems ensuring connectivity with Schneider Electric PLCs.
Features
-
Industrial network link: CANopen®, Modbus-RTU, PROFIBUS-DP, Modbus-TCP, EtherNet/IP, PROFINET or EtherCAT®
-
A web server for EtherNet versions
-
USB link with eNodView PC software
-
Optional touchscreen eNodTouch
-
Bluetooth with Android App
![eNod4 connectivity]()

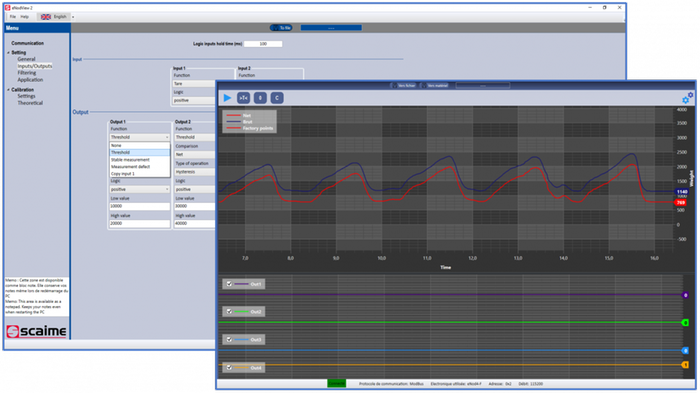

eNodView PC software
eNodView is the software for eNod’s calibration and programming.
eNodView functions
-
Save and restore eNod4 configuration files
-
Setting, calibration and eNod4 control
-
Measurements, results and I/O graphical display
-
Digital filters optimization by FFT analysis and eNod4 filter effect simulation
![eNodView PC software]()

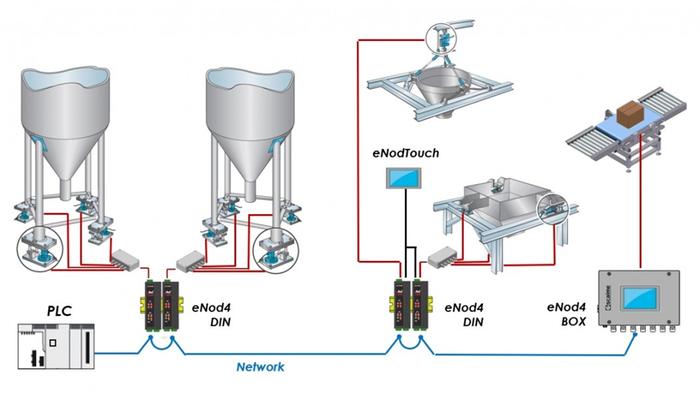

eNod4-T for silo, hopper or conveyor weighing
eNod4-T offers accurate storage control for small size tanks up to several hundred tons silos, thanks to a non-intrusive technology regardless of the container shape.
Features
-
Factory pre-calibration allowing replacement without calibration
-
Physical or theoretical calibration, gravity correction management
-
Management of 4 digital filtering levels allowing to always reach a quick and stable measurement in noisy environments
-
Weighing functions: Zero, Zero at start-up, Zero tracking, Tare, Measurement stability control
![eNod4-T for silo, hopper or conveyor weighing]()

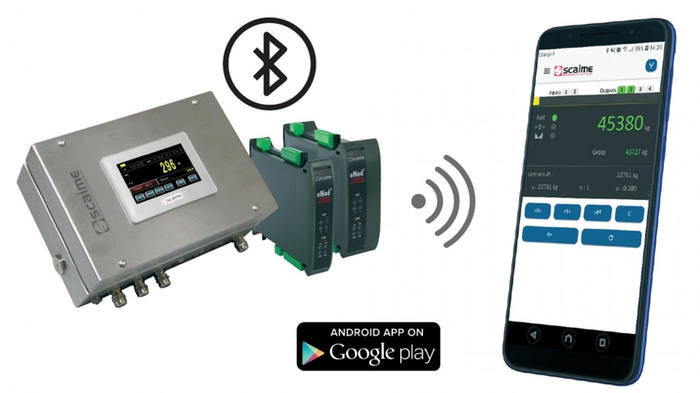

eNodApp mobile application
eNodApp allows remote control of eNod4 weighing systems installed in environments that are difficult to access. The application offers a secure interface to perform all common weighing operations or maintenance operations.
Features
-
Reading and modification of all data and parameters
-
Performing weighing functions (Zero, Tare) or eNod4 application control (start / stop / suspend)
-
Calibration of the weighing system
![eNodApp mobile application]()
Solutions - Connected product layer
eNod4 is a high performance weighing controller specially designed for easy and fast integration in automated system thanks to fieldbus or Ethernet connectivity.
eNod4 is a single channel weighing module able to manage up to 8 load cells. It is designed for most demanding weighing applications in terms of accuracy and speed.
eNod4 includes advanced application for calibration, digital filtering for vibration cancellation and weighing functions like Zero, Tare and measurement stability control.
Solutions - Edge control layer
eNod4 offers a perfect connectivity with Modicon PLCs through CANopen, Modbus-TCP or Ethernet/IP networks. All the configuration parameters, the process data and weighing functions are accessible from EcoStruxure Machine Expert and Ecostruxure Control Expert.
To implement and optimize the weighing application, SCAIME offers the software eNodView allowing to display measurements, display and adjust the digital filters effect, make the application setting.
Solutions - Apps, analytics, & services
SCAIME provides several software tools to implement and optimize the weighing application.
eNodView is a PC software allowing to display measurements, adjust the digital filters, make the application setting and save the configuration.
The application eNodApp, accessible from any Android smartphone or tablet, allows to control the weighing system, without physically accessing eNod4 or interrupting communication with the control system. The application offers a secure interface for configuring the system, carrying out weighing processes, or conducting maintenance operations such as calibration.
eNod4 with Ethernet connectivity also offers a webserver allowing full eNod4 remote control, Read & write parameters, calibrate the weighing system and display all the measurements.
eNod4 connectivity
The eNod4 weighing controllers are designed to be integrated into automated systems ensuring connectivity with Schneider Electric PLCs.
Features
- Industrial network link: CANopen®, Modbus-RTU, PROFIBUS-DP, Modbus-TCP, EtherNet/IP, PROFINET or EtherCAT®
- A web server for EtherNet versions
- USB link with eNodView PC software
- Optional touchscreen eNodTouch
- Bluetooth with Android App
eNodView PC software
eNodView is the software for eNod’s calibration and programming.
eNodView functions
- Save and restore eNod4 configuration files
- Setting, calibration and eNod4 control
- Measurements, results and I/O graphical display
- Digital filters optimization by FFT analysis and eNod4 filter effect simulation
eNod4-T for silo, hopper or conveyor weighing
eNod4-T offers accurate storage control for small size tanks up to several hundred tons silos, thanks to a non-intrusive technology regardless of the container shape.
Features
- Factory pre-calibration allowing replacement without calibration
- Physical or theoretical calibration, gravity correction management
- Management of 4 digital filtering levels allowing to always reach a quick and stable measurement in noisy environments
- Weighing functions: Zero, Zero at start-up, Zero tracking, Tare, Measurement stability control
eNodApp mobile application
eNodApp allows remote control of eNod4 weighing systems installed in environments that are difficult to access. The application offers a secure interface to perform all common weighing operations or maintenance operations.
Features
- Reading and modification of all data and parameters
- Performing weighing functions (Zero, Tare) or eNod4 application control (start / stop / suspend)
- Calibration of the weighing system
Solutions - Connected product layer
eNod4 is a high performance weighing controller specially designed for easy and fast integration in automated system thanks to fieldbus or Ethernet connectivity.
eNod4 is a single channel weighing module able to manage up to 8 load cells. It is designed for most demanding weighing applications in terms of accuracy and speed.
eNod4 includes advanced application for calibration, digital filtering for vibration cancellation and weighing functions like Zero, Tare and measurement stability control.
Solutions - Edge control layer
eNod4 offers a perfect connectivity with Modicon PLCs through CANopen, Modbus-TCP or Ethernet/IP networks. All the configuration parameters, the process data and weighing functions are accessible from EcoStruxure Machine Expert and Ecostruxure Control Expert.
To implement and optimize the weighing application, SCAIME offers the software eNodView allowing to display measurements, display and adjust the digital filters effect, make the application setting.
Solutions - Apps, analytics, & services
SCAIME provides several software tools to implement and optimize the weighing application.
eNodView is a PC software allowing to display measurements, adjust the digital filters, make the application setting and save the configuration.
The application eNodApp, accessible from any Android smartphone or tablet, allows to control the weighing system, without physically accessing eNod4 or interrupting communication with the control system. The application offers a secure interface for configuring the system, carrying out weighing processes, or conducting maintenance operations such as calibration.
eNod4 with Ethernet connectivity also offers a webserver allowing full eNod4 remote control, Read & write parameters, calibrate the weighing system and display all the measurements.
